Black EPDM Solid Rubber Door Seal Profile
Main Specificaton >>>>>>>
Number | Item | Unit | Result |
1 | Hardness | shore A | 50+/-5 | 60+/-5 | 70+/-5 |
2 | Tensile Strength | Mpa | >=7 | >=7 | >=7 |
3 | Elongation at Break | % | >=400 | >=300 | >=200 |
4 | Tearing Strength | KN/M | >=15 | >=15 | >=15 |
5 | Air ageing(70+/-2)℃/70h | Hardness | 0~+5 | 0~+5 | 0~+5 |
Tensile strength (%)Max | -25 | -25 | -25 |
Elongation at break (%)Max | -35 | -35 | -35 |
6 | density | g/cm3 |
|
|
|
7 | Compression Set % | (23±2）℃/72h | <=35 | <=35 | <=35 |
|
| (70±2）℃/24h | <=50 | <=50 | <=50 |
8 | Brittleness Temperature | <= | -35 | -35 | -35 |
9 | Ozone Ageing | tensile strength 20%, (40+/-2)℃/72h | no cracking |
ozone concentration (2+/-0.2)*10-6 |
|
|
|
10 | Polluting |
| without transfer pollution |
11 | Weather resistant | (63+/-2)℃/300h | no cracking |

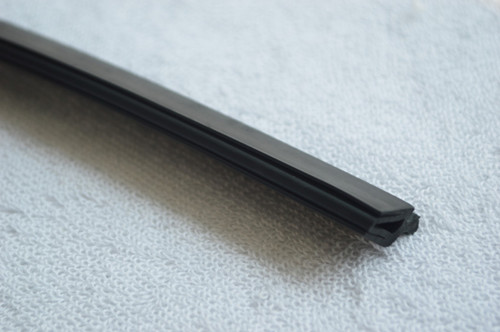

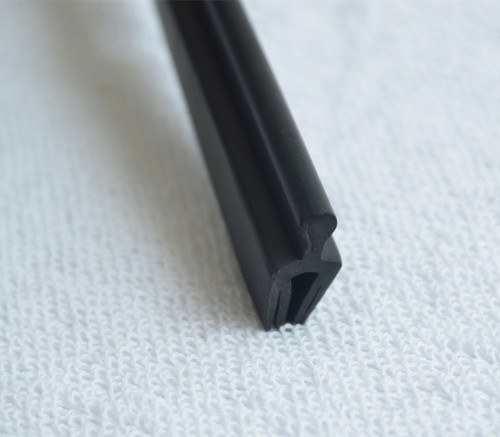

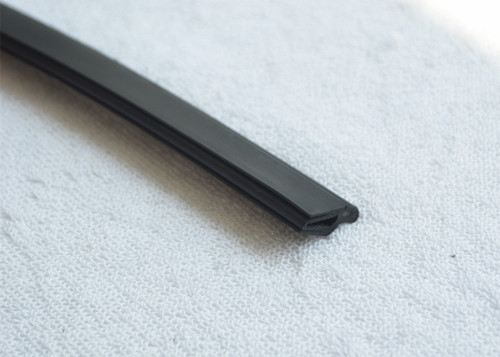

Picture details:
This EPDM Solid Rubber Door Seal Profile is widely used in the condition of high temperature and elasticity requirement.
Production Capability >>>>>>>
| Flocking rubber seal | Self Adhesive rubber strip | Cut pieces rubber | Rubber sealS pecial packing |
| Spliced rubber seal | Vulcanized rubber strip | Vulcanized spliced rubber | Punchine and Drilling |
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
We are glad to answer any questions regarding rubbers, plastics or thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, certificates, samples or send us any inquiry. Thanks very much.
