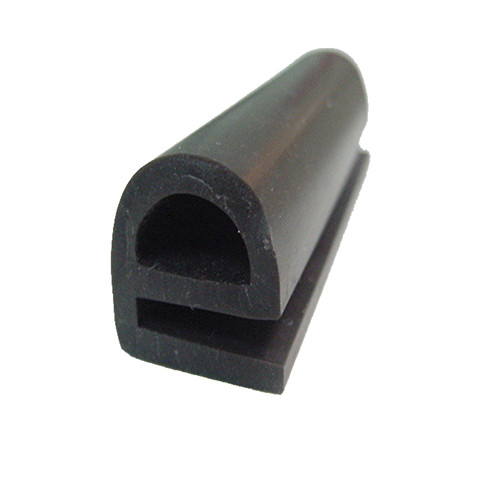

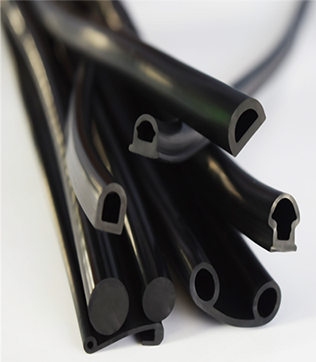

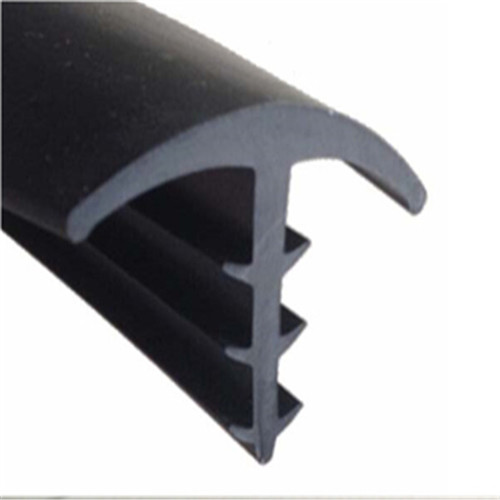

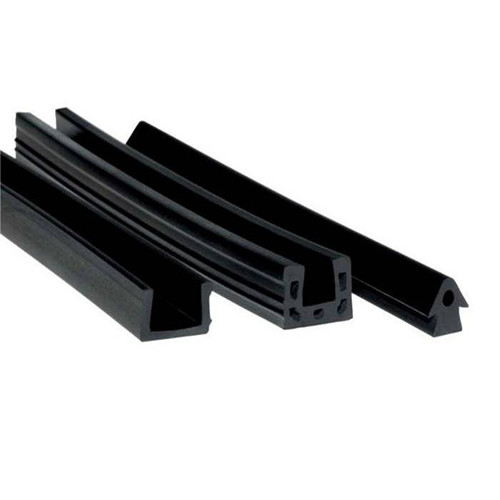

Extruded EPDM car door rubber seals
Main Specificaton >>>>>>>
With different shapes apply to various of door, such as wooden doors, bridge aluminum door, security door,moving gates, sliding doors,auto doors etc. Widely used on Household appliances, hotel, hospital, business building, clean projects, and large market malls.
Features:
*Application on garage door bottom.
*Has good elasticity.
* It is quick and easy to install onto the door bottom to reduce noise, light and air movement.
*the raw EPDM content 25~55%.
*compression set (180℃X22h) 40~18%, -50℃ keep elasticity, no stink taste.
*perfect long -term anti-aging properties compare than other material, service life can be up to 20 years.
Specification Date Sheet
|
| Number | Item
| Unit | Result
|
| 1 | Hardness
| shore A | 50+/-5 | 60+/-5 | 70+/-5 |
| 2 | Tensile Strength | Mpa | >=7
| >=7 | >=7 |
| 3 | Elongation at Break | %
| >=400 | >=300 | >=200 |
| 4 | Tearing Strength | KN/M
| >=15
| >=15 | >=15 |
| 5 | Air ageing(70+/-2)℃/70h | Hardness | 0~+5
| 0~+5 | 0~+5 |
| Tensile strength (%)Max | -25
| -25 | -25 |
| Elongation at break (%)Max | -35
| -35 | -35 |
| 6 | density | g/cm3 |
|
|
|
| 7 | Compression Set % | (23±2）℃/72h | <=35 | <=35 | <=35 |
|
| (70±2）℃/24h | <=50 | <=50 | <=50 |
| 8 | Brittleness Temperature | <= | -35 | -35 | -35 |
| 9 | Ozone Ageing | tensile strength 20%, (40+/-2)℃/72h | no cracking |
ozone concentration (2+/-0.2)*10-6 |
|
|
|
| 10 | Polluting |
| without transfer pollution |
| 11 | Weather resistant | (63+/-2)℃/300h | no cracking |
More details:
This rubber seal strip is widely used in the condition of high temperature and elasticity requirement.
Production Capability >>>>>>>
| Flocking rubber seal | Self Adhesive rubber strip | Cut pieces rubber | Rubber sealS pecial packing |
| Spliced rubber seal | Vulcanized rubber strip | Vulcanized spliced rubber | Punchine and Drilling |
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
We are glad to answer any questions regarding rubbers, plastics or thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, certificates, samples or send us any inquiry. Thanks very much.
