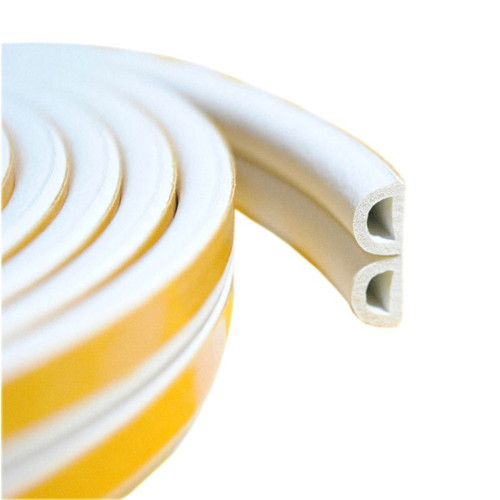

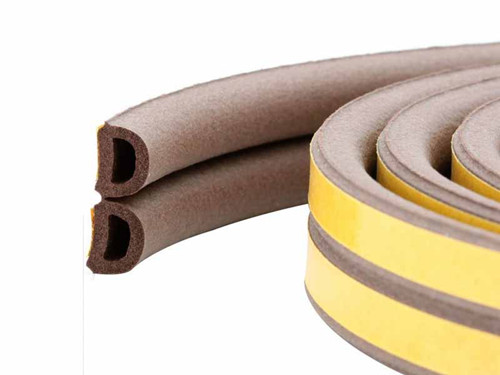

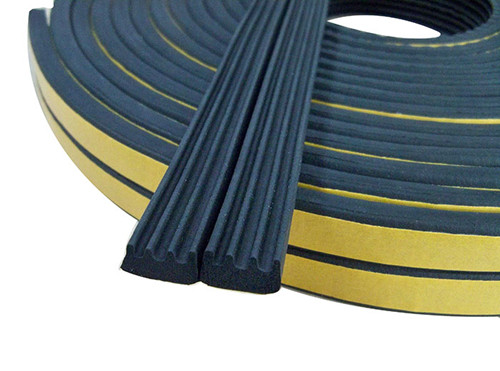

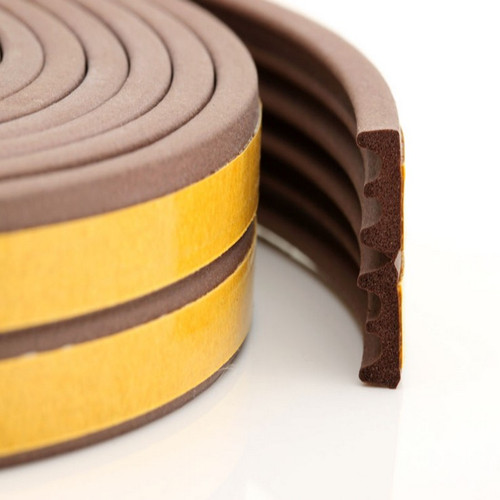

Self adhesive epdm sponge rubber window door weatherstrip
Main Specificaton >>>>>>>
Temperature: -50°C to +260°C
Density (lb/ft³): 16 (as standard), 20 (FDA grade). 10, 24 and 33 available upon request.
Availability: ODM/OEM
Colour: Red, White, Green (as standard Panton Color Card).
Length (mtrs): Various depending on diameter. Subject to minimum order quantities.
Feature: corrosion-resistant, anti-aging, acid, surface smooth and bright, comfortable feel and so on.
More details :
Silicone rubber tube common tolerance (mm mm)
| I.D.x O.D. | Tolerance | I.D.x O.D. | Tolerance |
| 0.5×1 | ±0.05 ±0.05 | 1×2 | ±0.05 ±0.1 |
| 1.5×2.5 | ±0.05 ±0.1 | 2×4 | ±0.1 ±0.15 |
| 3×5 | ±0.1 ±0.15 | 5×8 | ±0.1 ±0.2 |
| 6×9 | ±0.15 ±0.2 | 10×14 | ±0.2 ±0.3 |
| 12×16 | ±0.2 ±0.3 | 30×38 | ±0.5 ±1 |
Extruded rubber seal strip with metal or fabric insert are available. P D L T H shape, U-channel, rubber tubing, solid cord, sponge cord, epdm cord, closed-cell sponge, silicone profile, pvc edge trim, almost any other custom rubber extrusion shapes to meet your applications:
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Note:
*Other colours may be available upon request.
Manufactured to order, may be subject to minimum order quantities, please enquire.
*Please quote our product code on enquiry.
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
