neoprene rubber gasket extrusion for cabinet
Main Specificaton >>>>>>>
Solid neoprene rubber strip, available in a range of sizes. Ideal as a weather seal, door strip, or as a base for handmade gaskets, spacers, etc. This rubber is commercial grade neoprene, used to seal against water, oils and grease .
Main Technical Specifications |
| Item | Standard | Standard |
1 | Tensile Strength (Mpa) | >=7 | >=2.5 |
2 | Elongation At Break (%) | >=200 | >=330 |
3 | Density (g/cm3) | 1.35g.cm3 | 0.65g/cm3 |
4 | Hardness (Shore A) | 65+/-5shore A | 18shore A |
5 | Ozone Resistance （50 pphm% 40°Cx72hours） | No visible cracking | No visible cracking |
6 | Brittle Temperature °C | <=-40°C | <=-40°C |
7 | Air Aging | Tensile Strength (%) | >=-15% | >=-15% |
| Elongation At Break (%) | >=-25% | >=-25% |
8 | Compression Set | (23+/-2)°C 70H （%) | <=35 |
|
| (70+/-2)°C 24H （%） | <=50 |
|
More Details:

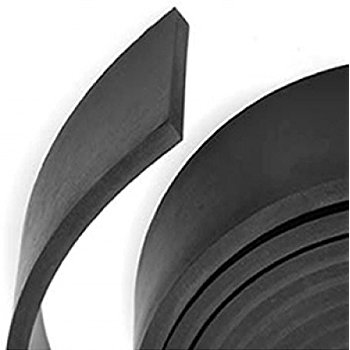

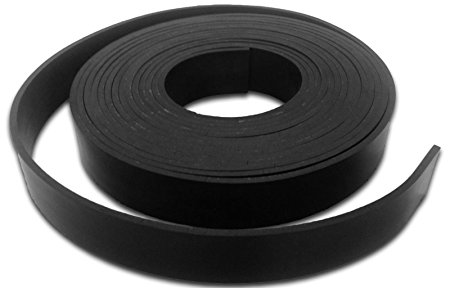

Solid, flexible neoprene rubber strip - 1.5mm thick
Available 25mm-200mm wide, in 5 or 10m lengths
Hardness: 65 Shore A
Operating temperature: -20°C to +90°C
Commercial quality to seal against oil, water and grease - makes an ideal weather seal
To meet customers’ exacting needs, our team of rubber experts strive to provide a cost competitive solution, within a short lead time from the design to production.
Our epdm rubber profiles can serve to a variety of industries including: Marine, Construction, Engineering, Automotive, Shop Fitting, Office Partitioning, Packaging, Lighting, Medical Products, D.I.Y, Furniture, Domestic Appliances and other manufacturers.
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |

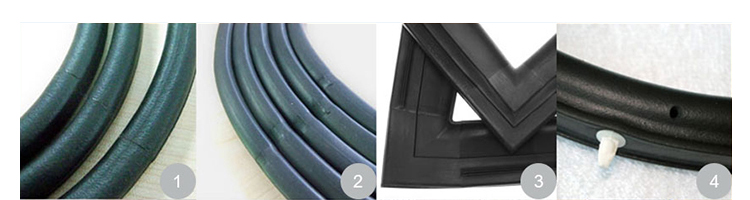

Gaskets with Molded or Injection Molded Corners

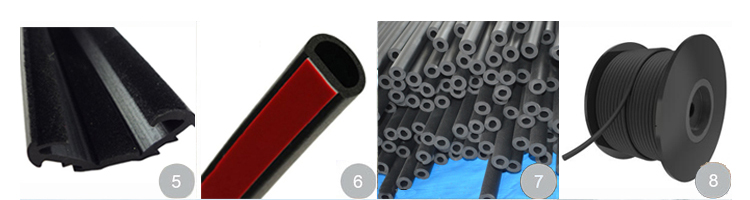

| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
