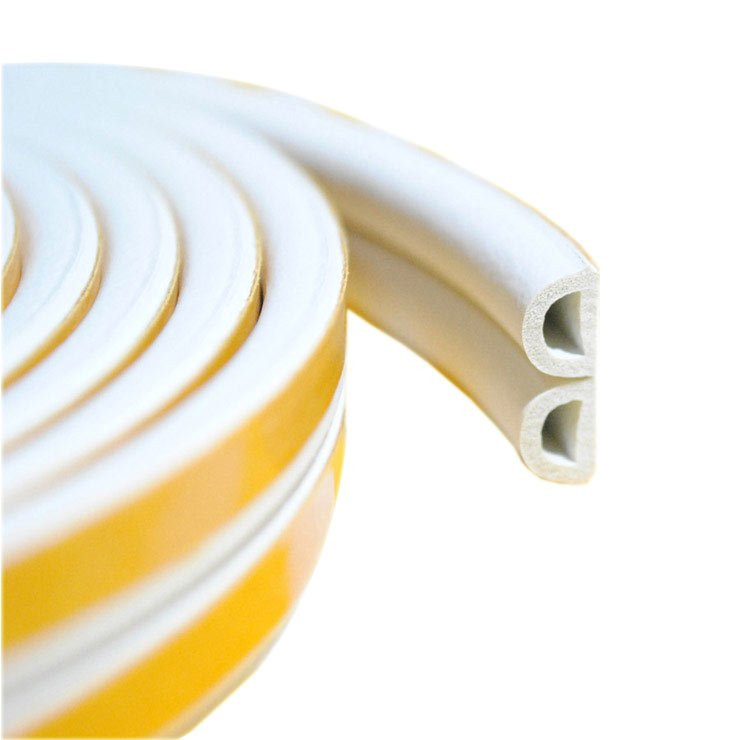

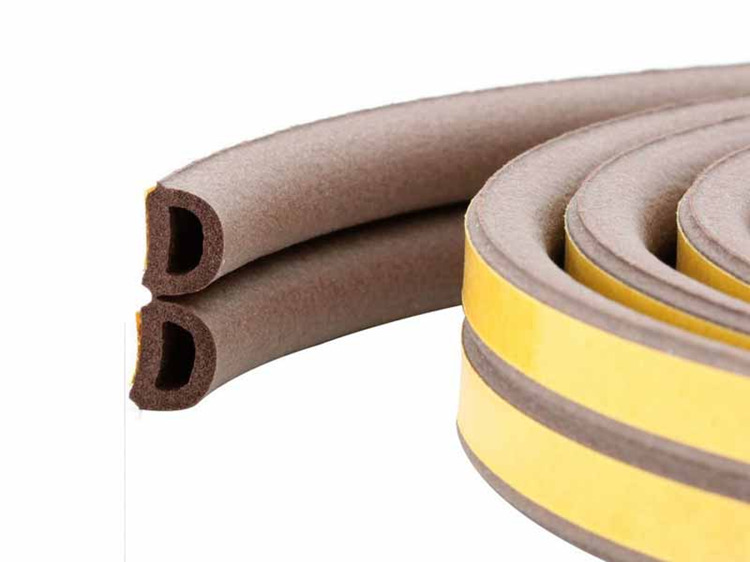

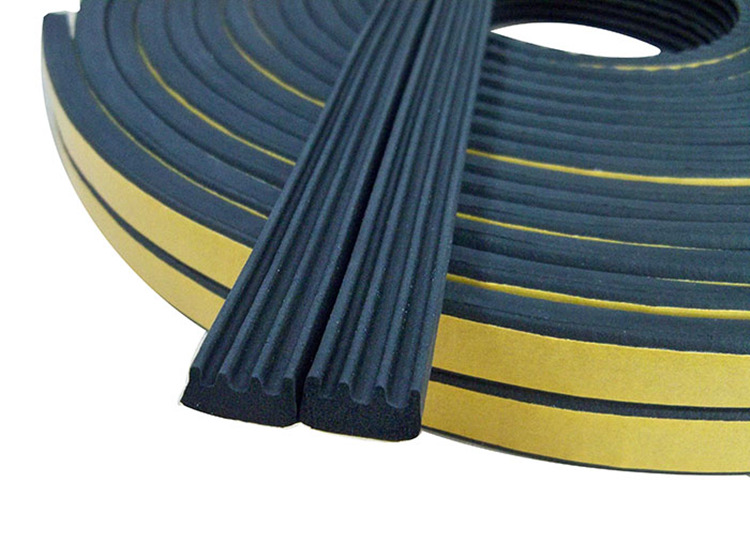

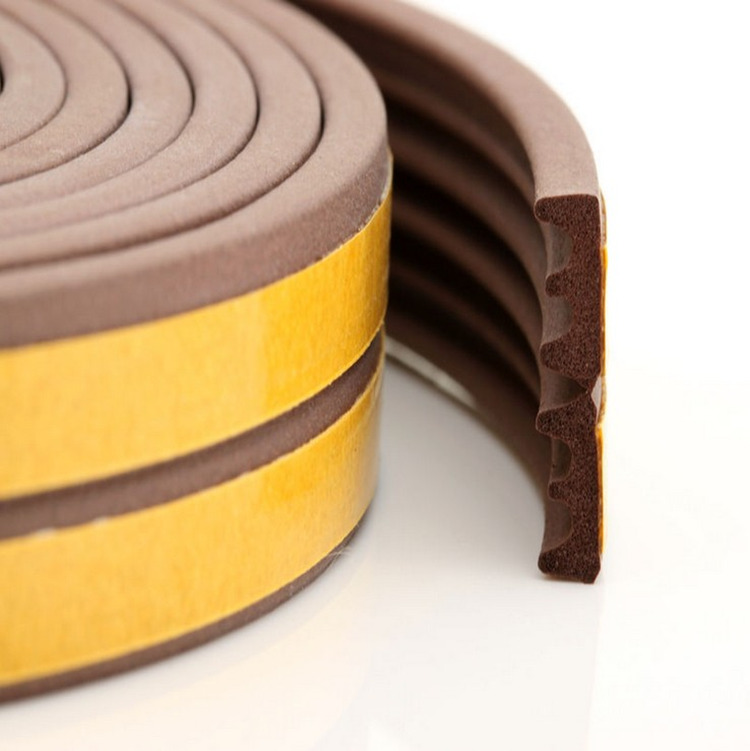

self adhesive epdm sponge rubber is used in window and door
Main Specificaton >>>>>>>
Item |
| Performance Index |
Hardness (Shore A) |
| 60~70 |
Tensile Strength (Mpa) |
| ≥8 |
Elongation at breakage (%) |
| 300 |
Hot air aging (70±2)℃/70h | hardness changes, Shore A | 0~+5 |
tensile strength changes,% | -15~+15 |
break elongation changes,% | -25~0 |
hardness changes,Shore A | 0~+5 |
Water proof (80±2)℃/120h | tensile strength changes,% | -15~+15 |
break elongation changes,% | -25~0 |
Compression set | (23±2)℃/72h | ≤35 |
| (70±2)℃/24h | ≤50 |
Brittleness temperature ℃ | no more than | -40 |
| stretch 20%,(40±2) ℃/72h |
|
Ozone resistance | ozone concentration | No crack |
| (2±0.2)*10^-6 |
|
Polluting |
| light pollution |
Causticity | (100±2) ℃/24h | not turn to black |
More Details:
EPDM E,D,P,U,V seal strip with adhesive tape, Door&window weatherstrip, glass, door car window frames, It has been tested to ensure protection against dust,sound, temperature, smoke, weather, light, water,wind, draughts, and even insects.
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
