Custom door bottom seal weather strip for garage door
Main Specificaton >>>>>>>
Materials: Epdm rubber
Color: Black, red, black, grey, yellow, blue, brown, any other colour is available
Tensile strength: 10MPA
Tolerance: RMA E2
Description: Mould extrusion, salt ,vulcanization,cooling
Customize: Avaliable ,as to technical drawing or actual sample
Temperature Range: EPDM -40 °F - 248 °F (-40°C - 120°C)
PVC -20 °F - 150 °F (-29°C - 65.5°C)
Silicone -60-220 centidgree
Hardness (Shore A)：PVC :85 Durometer (Shore A)
Silicone,EPDM :70 Durometer (Shore A)
Shape: as customer’s drawings
Garage Door Weather Strip
Click the link below for an overview of garage door weather seal.
Garage Door Weather Seal Overview

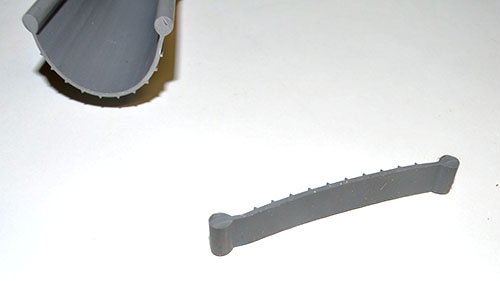

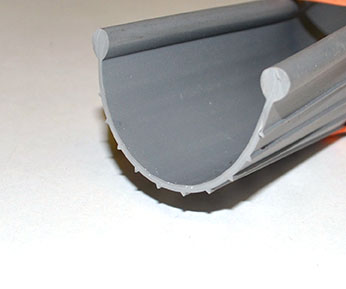

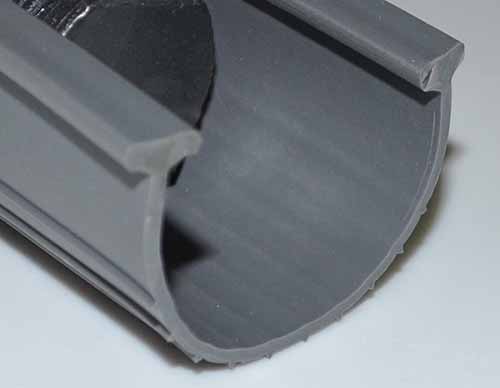

Garage door bottom seal.
Heavy duty high quality vinyl.
Choose from 3″, 4″ & 6″ Wide.
Round bead ends measure 3/16″ – Gray.
Also available in Black in all the same sizes as the Gray.
Ribbed on the outside to help prevent freezing to the floor.
Designed to slide into a round channel on the bottom of the door.
The beads are perfectly round, do not confuse with the similar Wayne Dalton style that is not completely round.
This garage door bottom weather stripping is an exact match to Taylor brand and other garage doors.
Easy to install, remove old weather seal, clean and straighten the bottom retainer if needed.
Check the ends of the retainer, they may have been pinched at time of original install, open those ends up if needed.
Spray lubricant into the channels of the retainer. One person guides the seal into the tracks, one person pulls the
weather seal. Do not stretch the weather seal tight, move it along the bottom of the door until it is not
being stressed or stretched, cut off any access and lightly crimp the ends of the channel
to hold the garage door bottom weather stripping in place.

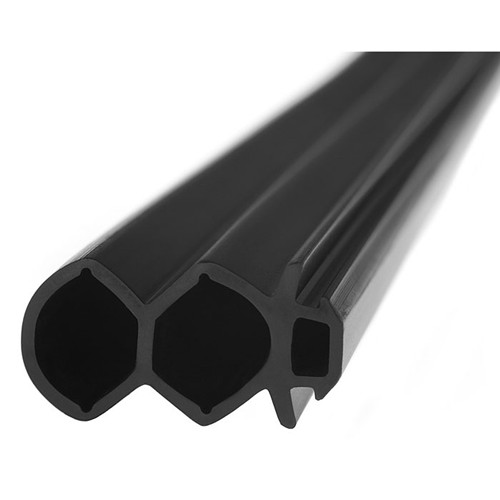

Other Extruded rubber seal strip with metal or fabric insert are available. P D L T H shape, U-channel, rubber tubing, solid cord, sponge cord, epdm cord, closed-cell sponge, silicone profile, pvc edge trim, almost any other custom rubber extrusion shapes to meet your applications:
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Note:
*Other colours may be available upon request.
Manufactured to order, may be subject to minimum order quantities, please enquire.
*Please quote our product code on enquiry.
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
