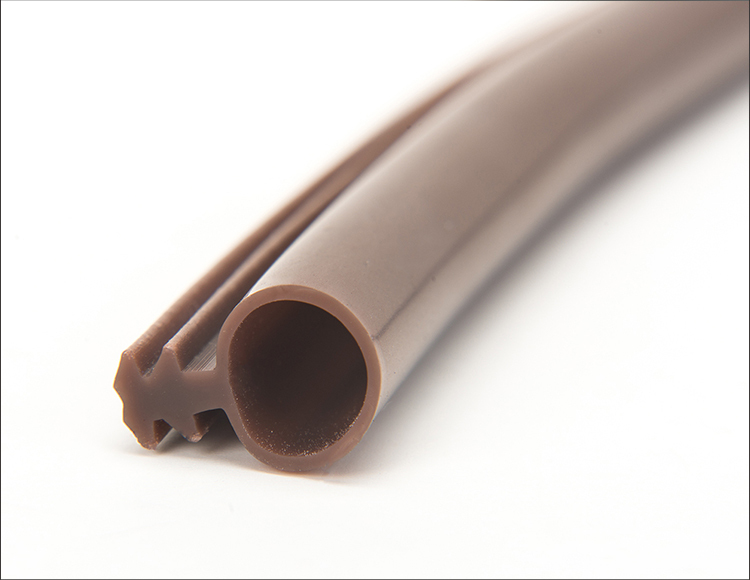

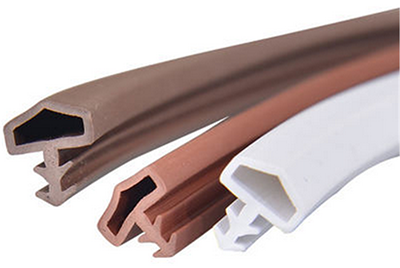

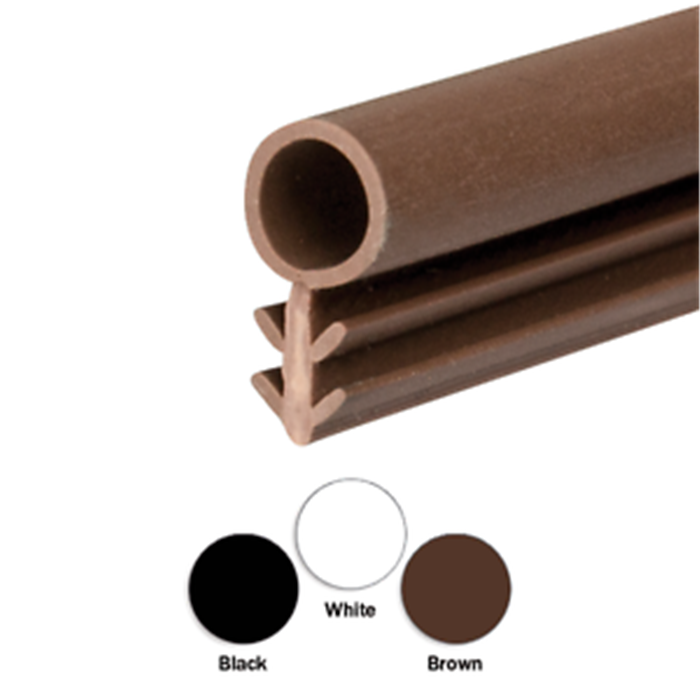

Certification SGS / ISO wooden and alloy aluminimum extruded door window pvc trim sealing strip
Main Specificaton >>>>>>>
Item | Unit | Performance Index |
Hardness | Shore A | 70 |
Tensile Strength | Mpa | ≥ 10 |
Break Elongation | % | ≥ 300 |
S.G | g/cm3 | 1.33± 0.02 |
Hot Air Aging (70±2) °C/70h |
|
Hardness Changes | Shore A | 0~+5 |
Tensile Strength | % | -10 |
Break Elongation | % | -15 |
Water Proof (80±2）°C/120h |
|
Hardness Change | Shore A | 0~+5 |
Tensile Strength | % | -19 |
Break Elongation | % | -18 |
More details :
Certification SGS / ISO wooden and alloy aluminimum extruded door window pvc trim sealing strip
More superiority:
ü PVC rigid carrier with flexible lip
ü U part (hard PVC) snapping the door frame firmly
ü Soft part supply excellent seal
ü High precision & low tolerance
ü Convenient to install
Extruded rubber seal strip with metal or fabric insert are available. P D L T H shape, U-channel, rubber tubing, solid cord, sponge cord, epdm cord, closed-cell sponge, silicone profile, pvc edge trim, almost any other custom rubber extrusion shapes to meet your applications:
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Rubber Sealing System for vehicles>>>>>>>
1. Primary Door Seal (Door Mounted Weatherstrip)
2. Secondary Door Seal (Body Mounted Weatherstrip)
3. Flocked/Coated Window Glass Run Channel
4. Waist Belt Line Weather-strips/Window Felts (Inner and Outer)
5. Door Sill Seal
6. Front & Rear Windshield Weather-strip seal
7. Hood to Cowl Seal
8. Hood to Radiator Seal
9. Roof Rail Seal
10. Quarter Window Vent Seal
11. Tailgate Seal/Trunk Seal/Boot Seal
12. Molded Corner
13. Pillar Post Seal
Customized Rubber Profiles>>>>>>>
1. Solid EPDM Rubber Profile
2. Sponge EPDM Rubber Profile
3. Dual Durometer EPDM Rubber Profile
4. Bulb Trim Seal with steel core or steel wire core
5. Flocked/coated Glass Run Channel
6. EPDM Glass Run Channel with TPE Slip-Coating
7. Edge Trim/Edge Protector
8. Self-Adhesive EPDM Foam Seal
9. Self-Adhesive Neoprene Foam Tape
10. 3M Tape Backed Sponge Rubber Profile
11. Silicone Rubber Profile
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
