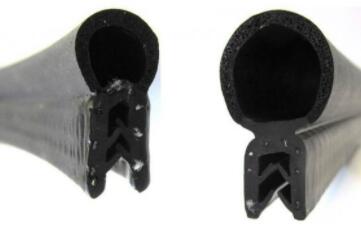

Co-extruded rubber extrusion boat for glass protection
Main Specificaton >>>>>
Item | Unit | Performance Index |
Hardness | Shore A | 70 |
Tensile Strength | Mpa | ≥ 10 |
Break Elongation | % | ≥ 300 |
S.G | g/cm3 | 1.33± 0.02 |
Hot Air Aging (70±2) °C/70h |
|
Hardness Changes | Shore A | 0~+5 |
Tensile Strength | % | -10 |
Break Elongation | % | -15 |
Water Proof (80±2）°C/120h |
|
Hardness Change | Shore A | 0~+5 |
Tensile Strength | % | -19 |
Break Elongation | % | -18 |
More superiority:
ü PVC rigid carrier with flexible lip
ü U part (hard PVC) snapping the door frame firmly
ü Soft part supply excellent seal
ü High precision & low tolerance
ü Convenient to install
More detail :
This rubber stripl isflexible and used widely onglass protection,even many industrials.
Our offeredepdm rubber profiles are designed in line with international quality standards using premium quality raw material and latest technology. Our offered rubber profiles are available in various dimensions and sizes as per the needs of clients. Our offered rubber profiles are widely used in the diverse industries for various applications
More of other extrusion rubber profiles we also can supply to you. Only send us your request details, we will give you the best solutions in 24hours.
Neoprene rubber extrusion can resist breakdown by water and air and is able to be isolated by virtue of its unique molecular structure.
Our neoprene rubber extrusion comes in both regular and high quality densities.
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Rubber Sealing System for vehicles>>>>>>>
1. Primary Door Seal (Door Mounted Weatherstrip)
2. Secondary Door Seal (Body Mounted Weatherstrip)
3. Flocked/Coated Window Glass Run Channel
4. Waist Belt Line Weather-strips/Window Felts (Inner and Outer)
5. Door Sill Seal
6. Front & Rear Windshield Weather-strip seal
7. Hood to Cowl Seal
8. Hood to Radiator Seal
9. Roof Rail Seal
10. Quarter Window Vent Seal
11. Tailgate Seal/Trunk Seal/Boot Seal
12. Molded Corner
13. Pillar Post Seal
Customized Rubber Profiles>>>>>>>
1. Solid EPDM Rubber Profile
2. Sponge EPDM Rubber Profile
3. Dual Durometer EPDM Rubber Profile
4. Bulb Trim Seal with steel core or steel wire core
5. Flocked/coated Glass Run Channel
6. EPDM Glass Run Channel with TPE Slip-Coating
7. Edge Trim/Edge Protector
8. Self-Adhesive EPDM Foam Seal
9. Self-Adhesive Neoprene Foam Tape
10. 3M Tape Backed Sponge Rubber Profile
11. Silicone Rubber Profile
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
