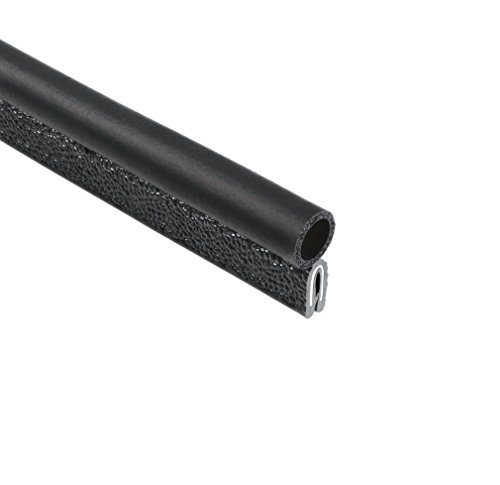

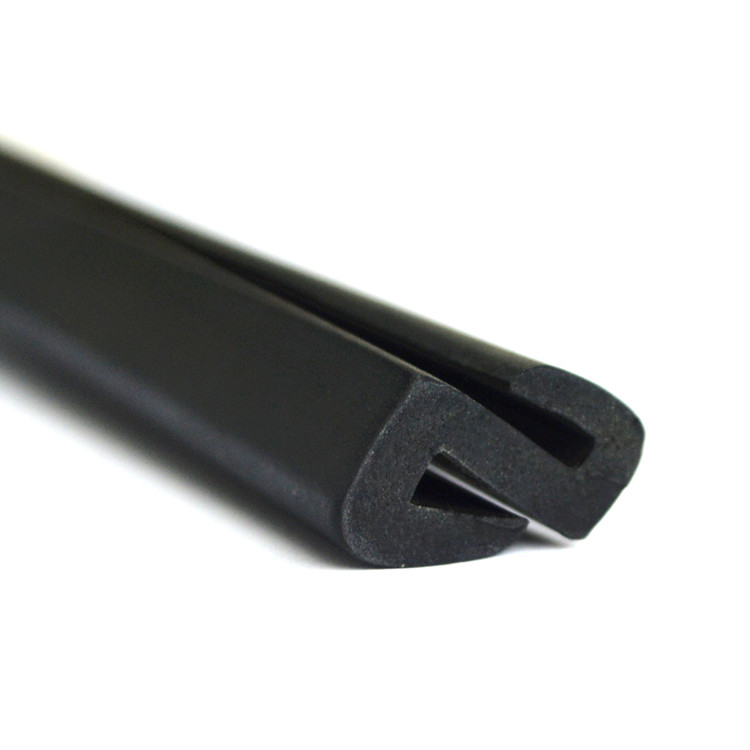

Fire resistant rubber extrusion EPDM seal for Rail Vehicle
Main Specificaton >>>>>
QINGDAO SEASHORE INDUSTRIAL CO.LTD |
DATE OF REPORT | 2017-1-30 | RH% | 50 |
DATE OF INS | 2017-1-30 | TEMPERATURE | 23 |
PROPERTIES OF EPDM PROFILE |
ITEM OF TESTING | STANDARD VALUE | RESULT OF TESTING |
1 | TENSILE STRENGTH MPA | ≥9 | 9.5 |
2 | ELONGATION AT BREAK % | ≥300% | 330 |
3 | DENSITY | 1.35+-0.05 | 1.35 |
4 | HARDNESS ( SHORE A) | 70+-3 | 68 |
5 | OZONE RESISTANCE (50pphm 20% 40℃ x 72hrs） | NO VISIBLE CRACKING | NO VISIBLE CRACKING |
6 | BRITTLE TEMPERATURE ℃ | ≦-35℃ | -40℃ |
7 | HEAT STABILITY (18 +-2 ℃) (H) | ≥2.0 | 3.3 |
TERM OF TESTING | STANDARD VALUE | ACTUAL VALUE |
8 | (70x70h） HOT AIR AGING | TENSLE STRENGTH | ≥-20% | VARIATION RATIO | -19 |
ELONGATION AT BREAK | ≥-20% | VARIATION RATIO | -18 |
9 | COMPRESSION SET | (23+/-2)℃ 70H (%) | ≦45 | 35 |
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Rubber Sealing System for vehicles>>>>>>>
1. Primary Door Seal (Door Mounted Weatherstrip)
2. Secondary Door Seal (Body Mounted Weatherstrip)
3. Flocked/Coated Window Glass Run Channel
4. Waist Belt Line Weather-strips/Window Felts (Inner and Outer)
5. Door Sill Seal
6. Front & Rear Windshield Weather-strip seal
7. Hood to Cowl Seal
8. Hood to Radiator Seal
9. Roof Rail Seal
10. Quarter Window Vent Seal
11. Tailgate Seal/Trunk Seal/Boot Seal
12. Molded Corner
13. Pillar Post Seal
Customized Rubber Profiles>>>>>>>
1. Solid EPDM Rubber Profile
2. Sponge EPDM Rubber Profile
3. Dual Durometer EPDM Rubber Profile
4. Bulb Trim Seal with steel core or steel wire core
5. Flocked/coated Glass Run Channel
6. EPDM Glass Run Channel with TPE Slip-Coating
7. Edge Trim/Edge Protector
8. Self-Adhesive EPDM Foam Seal
9. Self-Adhesive Neoprene Foam Tape
10. 3M Tape Backed Sponge Rubber Profile
11. Silicone Rubber Profile
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
