GLAZED WINDOW CHANNEL WINDSHIELD WEATHERSTRIP RUBBER EXTRUSION ☆
Main Specificaton >>>>>>>
Item |
| Performance Index |
Hardness (Shore A) |
| 60~70 |
Tensile Strength (Mpa) |
| ≥8 |
Elongation at breakage (%) |
| 300 |
Hot air aging
(70±2)℃/70h | hardness changes, Shore A | 0~+5 |
tensile strength changes,% | -15~+15 |
break elongation changes,% | -25~0 |
| hardness changes,Shore A | 0~+5 |
Water proof
(80±2)℃/120h | tensile strength changes,% | -15~+15 |
| break elongation changes,% | -25~0 |
Compression set | (23±2）℃/72h | ≤35 |
| (70±2）℃/24h | ≤50 |
Brittleness temperature ℃ | no more than | -40 |
| stretch 20%,(40±2) ℃/72h |
|
Ozone resistance | ozone concentration | No crack |
| (2±0.2)*10^-6 |
|
Polluting |
| light pollution |
Causticity | (100±2) ℃/24h | not turn to black |
More detail :

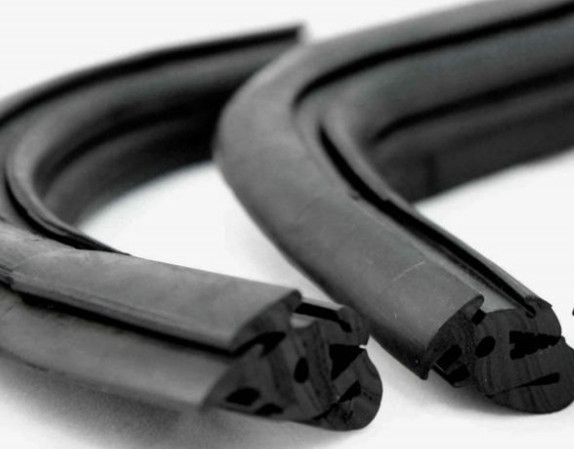

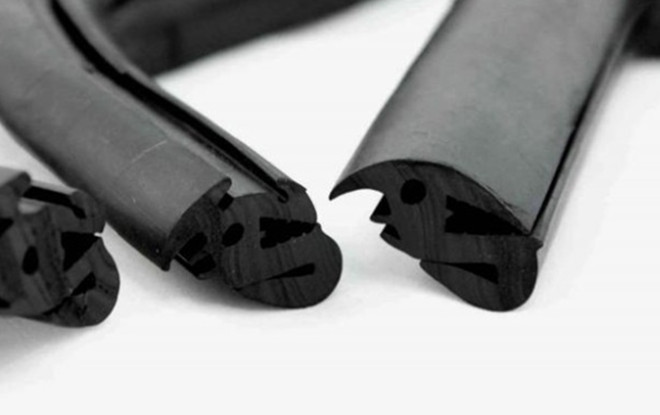

This rubber strip is used widely onwindshield for many transportations, etc.

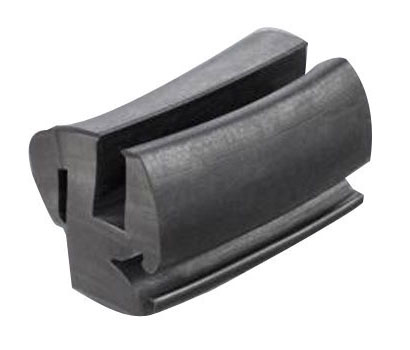

Glazing rubber channel and locking strips are used around the edges of glass windows and doors and are designed to fix the glass in place, in addition to achieving wind and water resistance.

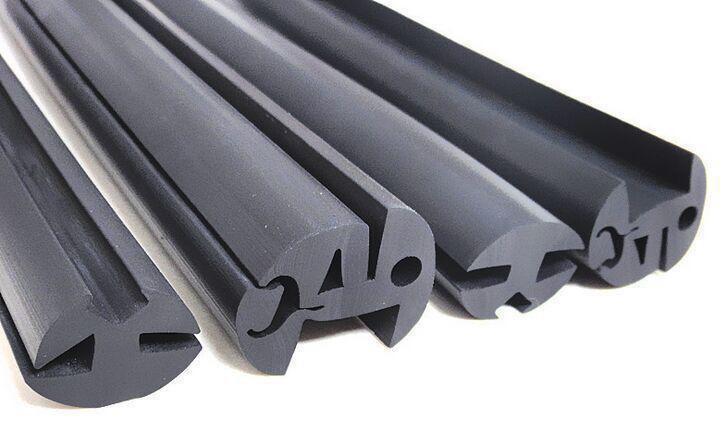

Glazing rubber channel and locking strip are made from EPDM rubber,including glazing seal with strength core and glazing seal without strength core,which are mainly used for fixing the windows and the windshields to provide a good seal between glass and metal sheet.
Production Capability >>>>>>>
MIXING ● EXTRUSION ● CO-EXTRUSION ● SPLICING ● CORNER MOLDING......
| Coil Form | Cut Pieces | Laser Printing | Flocking Profiles |
| Punchine and Drilling | Vulcanized Spliced Gasket | Self Adhesive Rubber Strip | Special Packaging |
Gaskets with Molded or Injection Molded Corners
| Simple and Complex Shaped Seals, Tubes, Gaskets |
| All Sizes from mini to large parts | Strip, Cord and Seal in Long Length on Reel or Coil as Cut Length |
| In House Tooling for Custom Size and Shaps | Large Inventory of Tools in Standard Shaps and Custom Sizes |
Rubber Sealing System for vehicles>>>>>>>
1. Primary Door Seal (Door Mounted Weatherstrip)
2. Secondary Door Seal (Body Mounted Weatherstrip)
3. Flocked/Coated Window Glass Run Channel
4. Waist Belt Line Weather-strips/Window Felts (Inner and Outer)
5. Door Sill Seal
6. Front & Rear Windshield Weather-strip seal
7. Hood to Cowl Seal
8. Hood to Radiator Seal
9. Roof Rail Seal
10. Quarter Window Vent Seal
11. Tailgate Seal/Trunk Seal/Boot Seal
12. Molded Corner
13. Pillar Post Seal
Customized Rubber Profiles>>>>>>>
1. Solid EPDM Rubber Profile
2. Sponge EPDM Rubber Profile
3. Dual Durometer EPDM Rubber Profile
4. Bulb Trim Seal with steel core or steel wire core
5. Flocked/coated Glass Run Channel
6. EPDM Glass Run Channel with TPE Slip-Coating
7. Edge Trim/Edge Protector
8. Self-Adhesive EPDM Foam Seal
9. Self-Adhesive Neoprene Foam Tape
10. 3M Tape Backed Sponge Rubber Profile
11. Silicone Rubber Profile
Note :
We are glad to answer any questions regarding rubbers, plastics or any thermoplastic extrusions.
Please do not hesitate to contact us for more details, brochures, drawings, certificates, samples or send us any inquiry. Thanks very much.
